4 Channel School Bus Surveillance Vehicle Security Camera System 720P MDVR Kits

Product Categories
Shenzhen Sunta Technology Co., Limited
Contact Now

4 Channel School Bus Surveillance Vehicle Security Camera System 720P MDVR Kits

Brand Name : LUHOOVISION

Model Number : ST-504AL-kit

Certification : CE FCC

Place of Origin : SHENZHEN,CHINA

MOQ : 1 piece

Price : USD 100-150 per piece

Payment Terms : T/T, Western Union

Supply Ability : 5000 units per month

Delivery Time : 5-8 working days.

Packaging Details : Professional paper box.

Product Name : 4ch Vehicle Security Camera System 720P MDVR Kits

Video format : PAL/NTSC

Compression format : H.264(Main Profile)

Pixel : 720P /960H/D1/CIF

Storage : 256GB SD Card

Cable length : To be advised

Contact Now

4 Channel School Bus Surveillance Vehicle Security Camera System 720P MDVR Kits

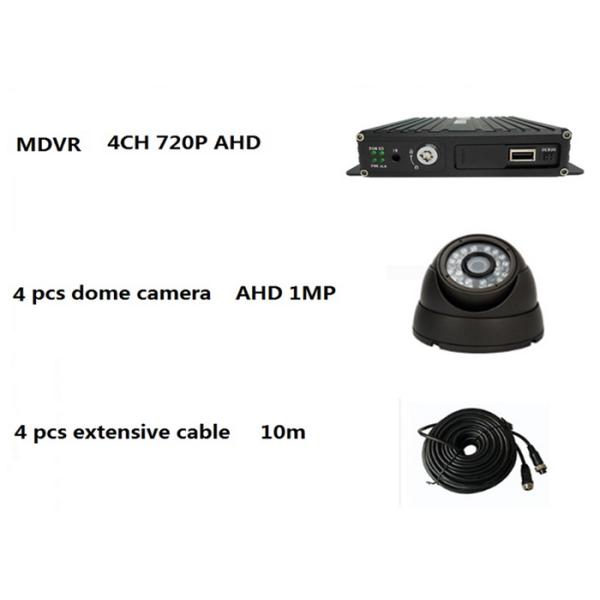

  • 1 Piece 4ch 720P Mobile DVR
  • 4 pieces 720P unti-shock vehicle mounted camera
  • 4 Extended cable for 4-pin aviation connector with optional length
  • one screen optional

The work of 4 Channel MDVR:

Record everything on and off the bus, including passenger and driver behaviors, bus/driving meta information, and panic button events
720P resolution by H.265 compression
Anti-vibration hard drive and SD card recording, up to 2tb storage
Digital zoom feature, built-in 3g/4g/wifi/GPS(Optional)

4 channel 720P MDVR specification:

Item Parameters Performance
System Model NO. SW-MAVR9504
Main processor Hi3520DV200
Operating system Embedded Linux
Language Chinese/English
Interface Graphical menu, support mouse
Password security Two-level management: user password; administrator password
V/A Video format PAL/NTSC
Compression format H.264(Main Profile)
Pixel 720P /960H/D1/CIF
Playback CIF/D1/720P
Combinations 4ch 720P/4ch 960H/2ch 720P+2ch 960H
Decoding capability 1ch real time 720P
Video quality 1-6 levels for choice
Screen display 1/4 screen display
Audio compression G.726
Audio recording Audio and video recording synchronization
Recording & playback Recording type Manual, alarm
Video bit rate Full frame 4096Mbps, 6 levels of video quality for choice
Audio bit rate 8KB/s
Storage SD card
Video search Search by channel, video type
Local playback According to file
Software Upgrading Upgrade Model Manual/auto/remote
Upgrade method USB interface, wireless internet
Interface Audio/video input 4ch aviation connector interface
Audio/video output 1ch VGA video output, 1ch aviation connector audio/video output.
Alarm input 4 digital inputs (2ch positive and 2ch negative trigger)
SD card 1*SDXC card (256G at max)
USB interface 1 * USB 2.0(supports U driver, keyboard and mouse)
Ignition input 1ch ACC signal
RS232 interface 1ch RS232 interface
LED lights PWR/RUN/DISK/WIFI/GPS
SD card lock 1
Debug serial port 1*serial system debugging
Extended functions GPS no
3G/4G NO
G-SENSOR no
Others Power input DC: 9V~36V (ISO7637 P5A 200V)
Power output 5V300mA
Power consumption Standby: 3mA, at working: 12W, Work full: 18W
Operating temperature -20 to +70 degrees
Storage capacity 720P 20G/day/channel
960H 12-20G/day/channel
Size 142*152*32(mm)

Analog-HD 1080P 2MP Vehicle Mounted Camera

Camera Sensor 1/2.8” 2.0 Mega Pixels CMOS
Signal PAL/NTSC
Resolution 1920(H)×1080(V)
Minimum illumination 0.01Lux@(F1.2,AGC ON),0 Lux with IR
Shutter PAL:1/25~1/100000
D/N ICR infrared filter switch automatically
White balance Support
BLC Support
Noise reduction Supports 2D digital noise reduction
Wide Dynamic Range >65dB
Lens Lens focal length 3.6mm (2.8mm,6mm,8mm optional)
Lens Mount M12
Lens aperture F2.0
LED led 24pcs
IR distance 20 meters
Infrared wave length 850nm
Infrared switch ICR synchronous switching
Interface Video interface 4pin aviation connector (1: +, 2: -, 3: audio, 4: video)
Others Voltage DC 12V±25%
Power consumption 3.5W MAX
Operating temperature -40℃~+60℃
Operating humidity <95% (No condensation)
Rate IP68
Size 90mm×75mm
Weight 400g
Installation Inside vehicle

What is the 4 Channel School Bus Surveillance Vehicle Security Camera System 720P MDVR Kits?

4 Channel School Bus Surveillance Vehicle Security Camera System 720P MDVR Kits

4 Channel School Bus Surveillance Vehicle Security Camera System 720P MDVR Kits
